Drop Point of Grease Tester

As per ASTM D566 , IP 132

The drop point of lubricating grease is used for determination of the dropping point of lubricating grease. The dropping point is an indication of the heat resistance of the grease and is the highest temperature at which it passes from a semi-solid to a liquid state under specific test conditions.

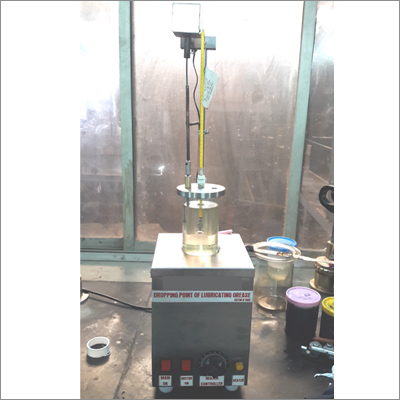

The Drop point tester is entirely made of SS 304. The electrical heaters are provided with temperature control and motorized stirrer. The equipment is supplied with sample tube, cup ,heating liquid bath and thermometer.


  • Energy regulator Temperature controller
  • One Thermometer as per ASTME 2C
  • Temperature range +40 to 350 degC
  • Power supply 230 ± 10% volt AC,1 phase,50Hz
